Just Yarn Elastic Constant Tension System
hiddenValue
- Description
- Parameter
- After-sales service
-
Features

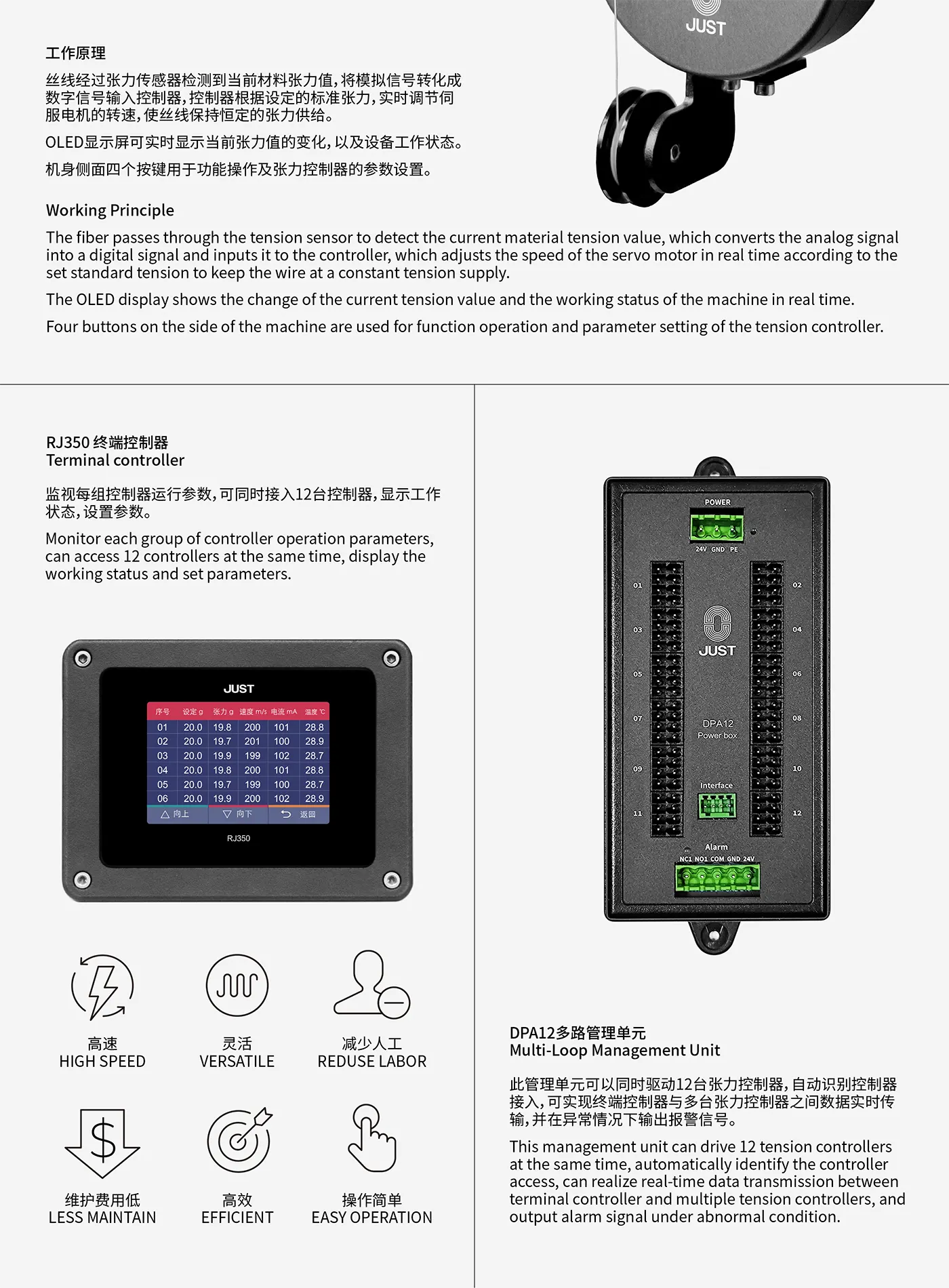

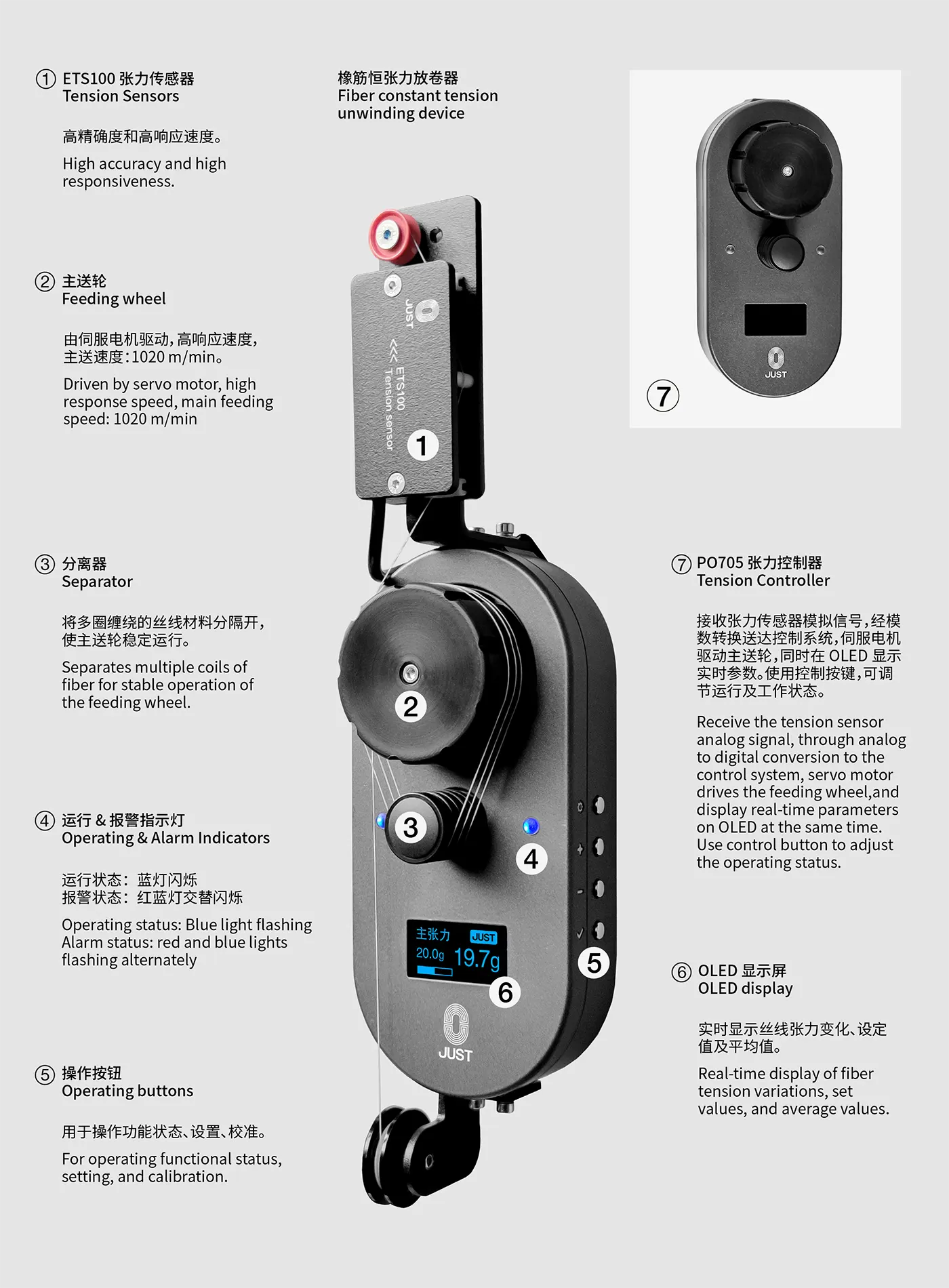

This device accurately detects the tension of fiber and ensures the
feeding of constant tension under any processing conditions by
precisely controlling the motor speed.
It can be applied to all production equipment that requires constant
tension fiber input.
Stable operation of production at high line speeds is possible.Benefits
● Fast respond to the change of production line speed
● OLED display with real-time display of material tension value
● Wide tension setting range: 0.5-99.9g (0.1g accuracy)
● High accuracy and responsiveness tension sensor
● Terminal controller can be equipped for centralized adjustment of single or multiple tension controllers
-
-
All automated control systems are based on simple control cycles, even the most complex production processes.
Purpose: To solve the deviation of the material position.
Observation: The sensor detects the edge of the material non-contact, and different types of sensors can be selected depending on the process and material.
Analysis: The controller transmits the calibration signal to the actuator according to the actual and preset parameter values.
Execution: The actuator corrects the direction and angle of the material to achieve the purpose of correction.A closed-loop control system consists of a guiding controller, actuator, product substrate and sensor. The product substrate on the production line has a designated position, when the substrate moves left and right, the sensor generates a signal to send to the controller, and after the signal is processed and amplified, the servo motor of the actuator is pushed to quickly and correctly perform the correction work, so that the product substrate returns to the specified position.
